PRODUCTS DETAILS

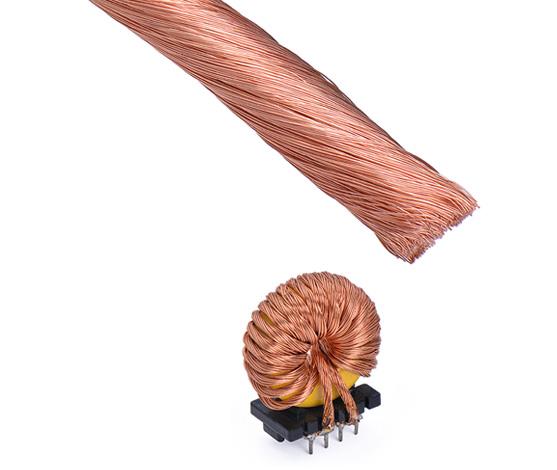

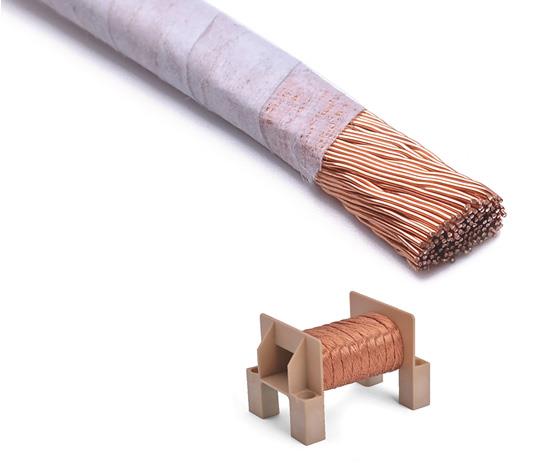

Litz Wire, made of multi-stranded enameled wire and formed circular or rectangular shape, which can effectively reduce the skin effect in the design of electronic products, to reduce the high-frequency resistance and improve Q value. It is easy to achieve for the design of high-voltage and high-frequency coils. It widely used to backlight transformer, high frequency transformer and motors.

Specification:

Material: copper or copper clad aluminum

Single wire diameter: 0.03mm~6.0mm

Thermal class: 130/155/180/200/220 degrees

Number of wires: 7~3000 strands

Stranding structure: single twisting, double twisting

Stranding direction: S/Z

Lay length: 2.0 ~ 55.0mm

Overall dimension: circular shape ≤50mm, rectangular shape L(≤50mm)*W(≤50mm)
