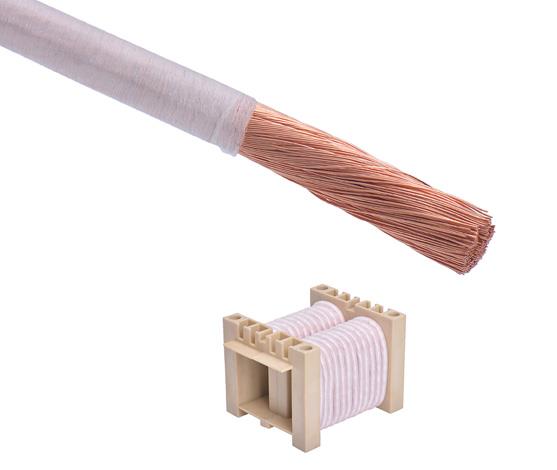

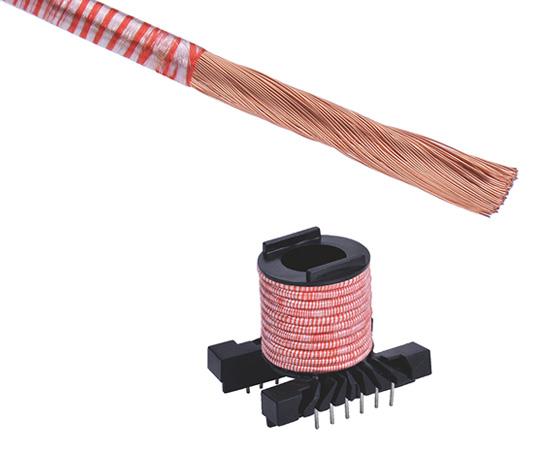

Silk Covered Litz Wire, combines the advantages of litz wire, with anti-scratching and insulation protection. Because of silk wrapped, the wire has good roundness and uneasy to be deformed.

Specification:

Material: copper or copper clad aluminum

Single wire diameter: 0.03mm~0.8mm

Thermal class: 130/155 degrees

Number of wires: 7~4000 strands

Stranding structure: single twisting, double twisting

Stranding direction: S/Z

Lay length: 3 ~ 70mm

Outer diameter: 0.15mm~10mm

Material of silk: polyester/nylon (in red/green/black/nature color)
